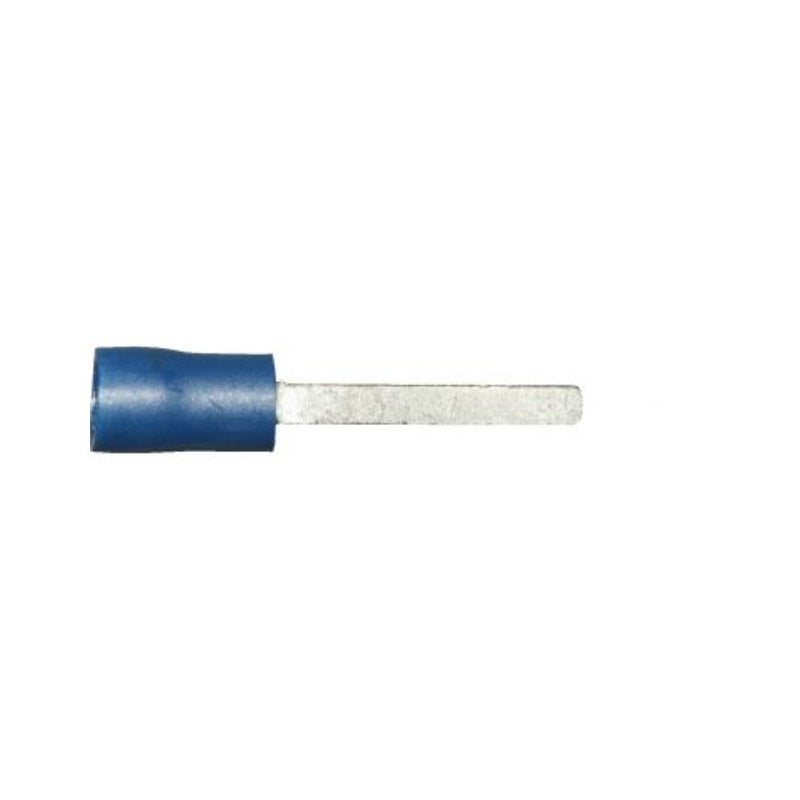

Insulated blade terminals put a flat, solid blade on the end of a stranded wire. The blade goes into a screw clamp or tunnel terminal, such as on a terminal block, contactor or breaker, so the screw bears on a solid surface instead of loose strands.
Krimpterm supplies them in packs of 100, in 6 sizes and 3 colours. Each size is given as blade width x blade length, from 2.3mm x 10mm to 4.5mm x 18mm, so check the opening and depth of the clamp before ordering. The body is tin plated copper with a flared, vinyl insulated barrel. Red takes 0.5 to 1.5mm² wire, blue 1.5 to 2.5mm² and yellow 4 to 6mm².
Specification
- Brand: Krimpterm
- Range: Terminals
- Product: Blade Terminals
- Pack: Pack of 100
- Colours: Blue, Red, Yellow
- Sizes: 2.3mm x 10mm, 2.3mm x 18mm, 2.8mm x 9mm, 3.0mm x 14mm, 2.8mm x 10mm, 4.5mm x 18mm
- Approvals: REACH compliant, RoHS compliant
Krimpterm product codes: RB2310, RB2318, RB2809, RB3014, BB2318, BB2809, YB2810, YB4518
