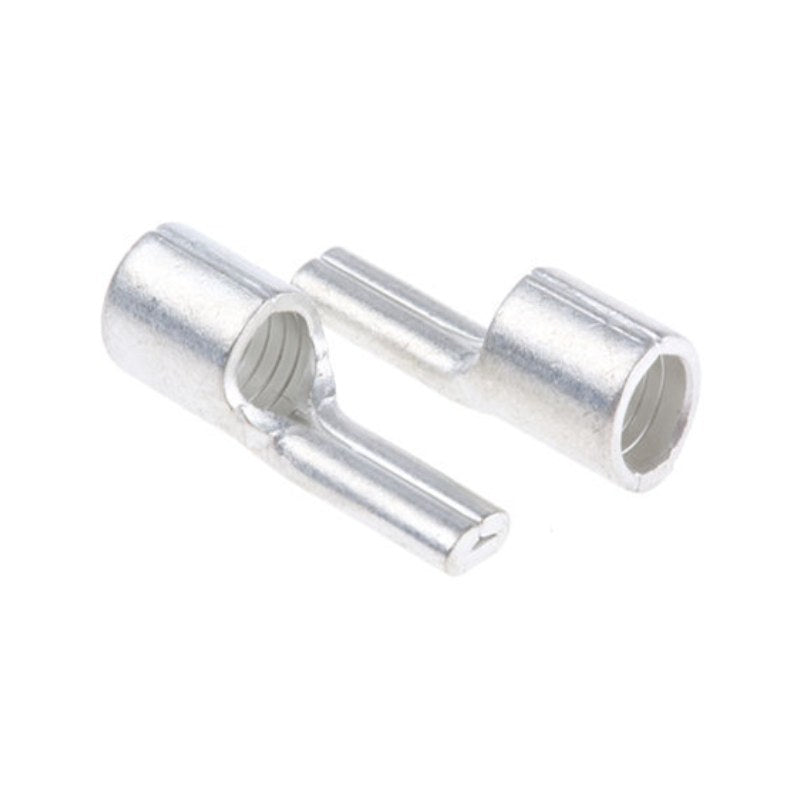

Brazed seam heavy duty pins are uninsulated pin terminals for larger stranded cables. The seam of the barrel is brazed shut, so it does not open up under crimp pressure, and the solid pin then goes into a clamp terminal.
They are copper with a bright electro tin plating. Supplied in packs of 10 and available in 6 sizes, from 10mm x 12mm to 70mm x 25mm. The first figure is the cable size and the second relates to the pin. Krimpterm notes they are commonly used on cables carrying higher currents, such as feeds into switchgear, drives and heavy plant.
Specification
- Brand: Krimpterm
- Range: Heavy Duty Uninsulated Pins
- Product: Brazed Seam Heavy Duty Uninsulated Pins
- Pack: Pack of 10
- Sizes: 10mm x 12mm, 16mm x 13mm, 25mm x 15mm, 35mm x 20mm, 50mm x 20mm, 70mm x 25mm
- Approvals: Halogen free
Krimpterm product codes: HDNIP10-12, HDNIP16-13, HDNIP25-15, HDNIP35-20, HDNIP50-20, HDNIP70-25
