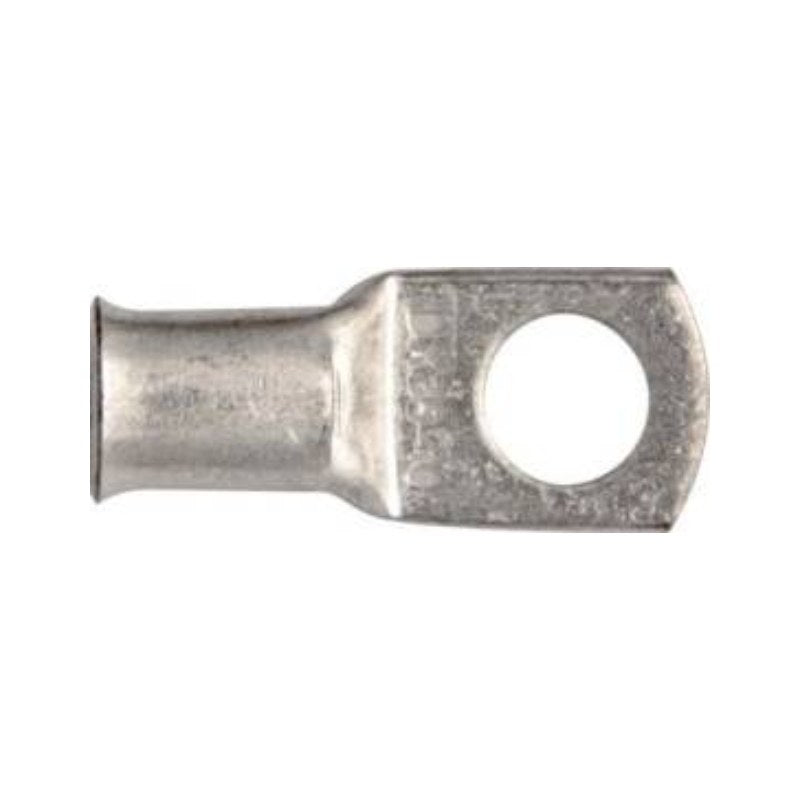

Copper tube cable lugs terminate larger cables onto studs and bolts in switchgear, distribution boards, battery banks and motor terminal boxes. The barrel has a bell mouth for easy cable entry and an inspection hole so you can confirm the conductor is fully home before crimping.
Krimpterm makes them in copper with a bright electro tin plating. They are available in 87 sizes. Each size reads as cable size, then stud hole: 16-8, for example, takes a 16mm² conductor and fits an 8mm stud. Pack quantity depends on size: 100 per pack up to 50mm², 10 per pack for 70mm² and 95mm², 5 per pack from 120mm² to 240mm², and single lugs from 300mm².
Typical uses
- Main earthing and bonding terminals
- Distribution board and switchgear connections
- Battery and inverter cables
- Generator and motor terminations
Specification
- Brand: Krimpterm
- Range: Copper Tube Terminals
- Product: Cable Lug Terminals - Copper Tube
Krimpterm product codes: R4-6, R6-4, R6-5, R6-6, R6-8, R6-10, R10-5, R10-6, R10-8, R10-10, R10-12, R16-5, R16-6, R16-8, R16-10, R16-12, R25-6, R25-8, R25-10, R25-12, R35-6, R35-8, R35-10, R35-12, R35-14, R50-6, R50-8, R50-10, R50-12, R50-14, R50-16, R70-6, R70-8, R70-10, R70-12, R70-14, R70-16, R95-6, R95-8, R95-10, R95-12, R95-14, R95-16, R95-20, R120-8, R120-10, R120-12, R120-14, R120-16, R120-20, R150-8, R150-10, R150-12, R150-14, R150-16, R150-20, R185-8, R185-10, R185-12, R185-14
