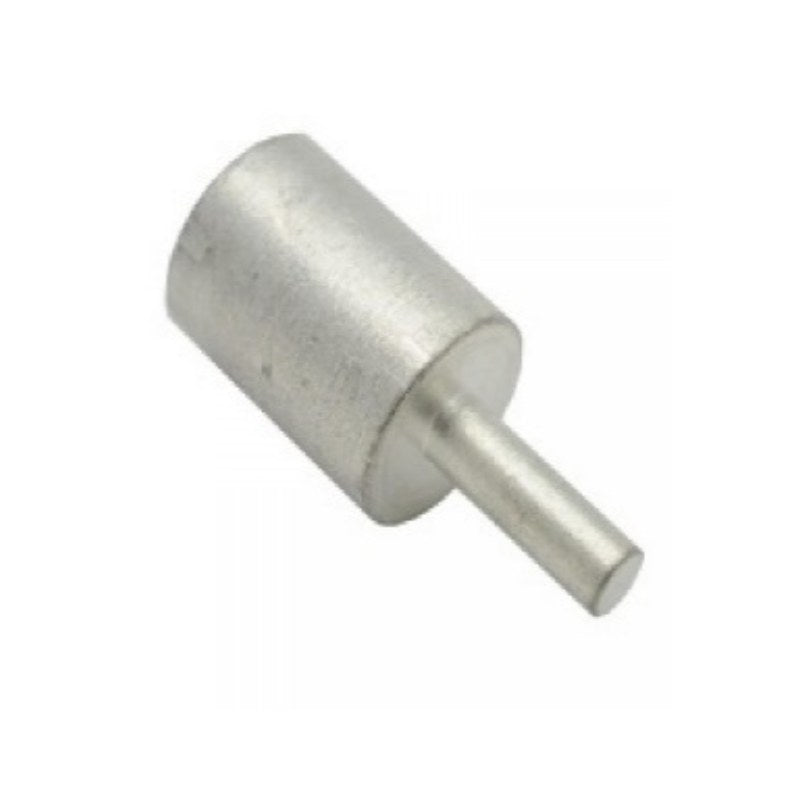

Copper tube pins put a solid pin on the end of a large stranded cable, so it can go into a clamp terminal made for a pin rather than a lug. They are used on higher current cables going into breakers, isolators and terminal blocks.
Krimpterm makes them in copper with a bright electro tin plating. Supplied in packs of 10 and available in 13 sizes, from 10mm to 400mm, matching the cable cross section in mm². Check the pin length against the depth of the terminal so no bare tube is left outside it.
Specification
- Brand: Krimpterm
- Range: Copper Tube Pins
- Product: Copper Tube Pins - Heavy Duty Copper Pins
- Pack: Pack of 10
- Sizes: 10mm, 16mm, 25mm, 35mm, 50mm, 70mm, 95mm, 120mm, 150mm, 185mm, 240mm, 300mm, 400mm
- Approvals: Halogen free, REACH compliant, RoHS compliant
Krimpterm product codes: CPIN10, CPIN16, CPIN25, CPIN35, CPIN50, CPIN70, CPIN95, CPIN120, CPIN150, CPIN185, CPIN240, CPIN300, CPIN400
