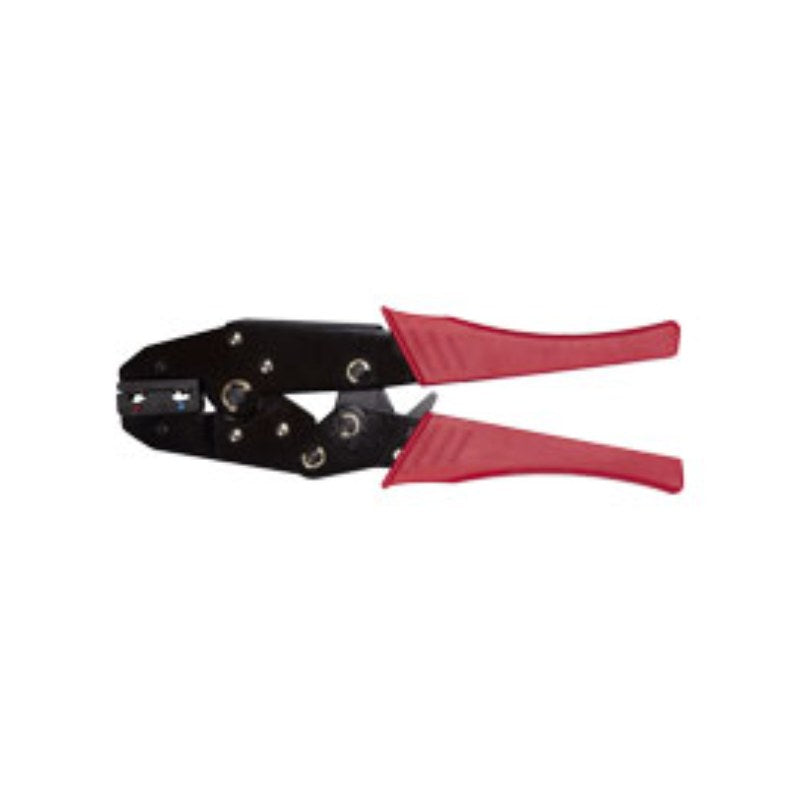

The Krimpterm CMP4 is a ratchet crimping tool for insulated flag terminals, where the cable enters at right angles to the tab. It crimps 0.5 to 2.5mm² cable, which covers red and blue flag terminals used on appliances, switches and heating elements in tight spaces.
Key features
- Crimps flag terminals from 0.5 to 2.5mm²
- Ratchet action with a pressure adjustable tensioner
- Hardened S45C steel body with electrophoresis finish
- Replaceable SCM440 jaws with black oxide finish
- Anti-slip red polypropylene handles
- Halogen free, REACH and RoHS compliant
Specification
| Code | CMP4 |
|---|---|
| Brand | Krimpterm |
| Terminal type | Insulated flag terminals |
| Crimping range | 0.5 to 2.5mm² |
| Body | S45C hardened steel (43 to 47 HRC), electrophoresis finish |
| Dies | SCM440 (HRC 42), black oxide |
| Handles | Red polypropylene, anti-slip |
| Compliance | Halogen free, REACH, RoHS |
| Length | 230mm |
| Weight | 0.6kg |
For regular or bulk orders, open a trade account or ask us for a quote.
Frequently asked questions
Which terminals does the Krimpterm CMP4 crimp?
Insulated flag terminals for cable from 0.5 to 2.5mm², which covers the red (0.5 to 1.5mm²) and blue (1.5 to 2.5mm²) sizes.
Can I adjust the crimp pressure?
Yes, the CMP4 has a pressure adjustable tensioner for setting the crimp force.
Can the jaws be replaced?
Yes, Krimpterm lists replaceable jaws on this tool.
