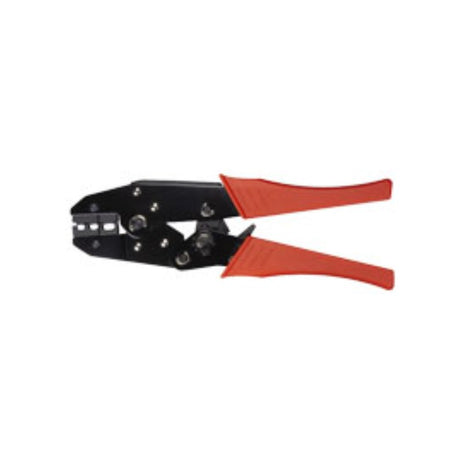

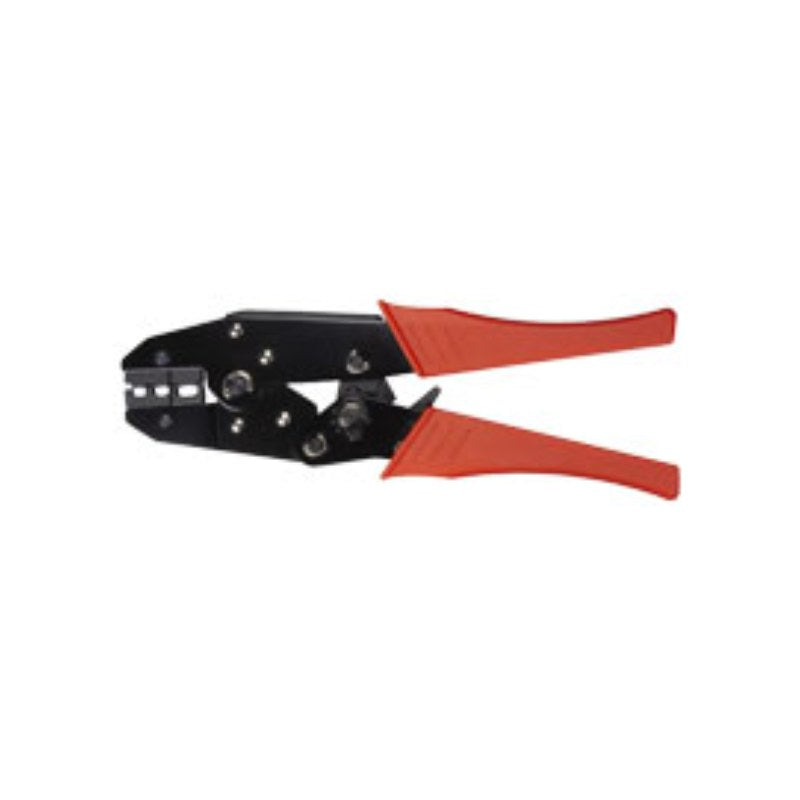

Ratchet crimping tool with dies shaped for heat shrink terminals, which can split in standard dies. It covers 0.5 to 6.0mm², the red, blue and yellow heat shrink terminals and butt connectors. Typical uses are sealed joints on vehicles, boats and outdoor equipment.
The ratchet holds until the crimp is complete, and pressure is adjustable.
Features
- Dies for heat shrink terminals and connectors
- Crimping range 0.5 to 6.0mm²
- Ratchet control with adjustable pressure
- Hardened S45C steel body, SCM440 dies
- Polypropylene handles
Standards
- Halogen free, REACH compliant, RoHS compliant
Specification
- Length: 230mm
- Product code: CMP15
