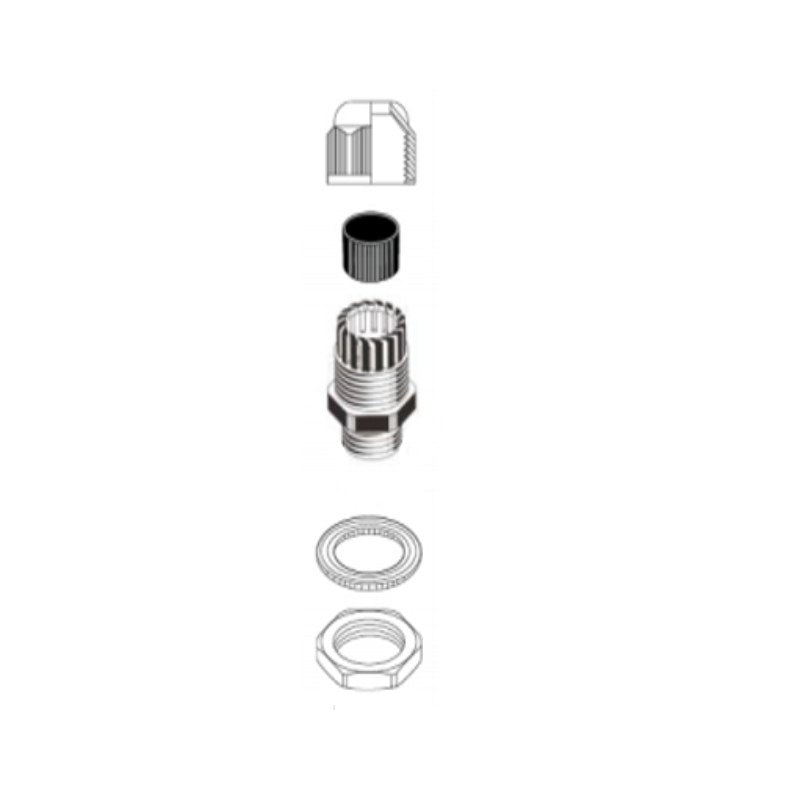

IP68 nylon cable glands from Krimpterm, RoHS, with gasket and locking nut. The gland goes through a threaded or plain hole in an enclosure, and tightening the dome cap compresses a seal round the cable to grip it and keep water and dust out.
Threads are metric with a 1.5mm pitch, M16 to M63. Choose the thread size for the hole first, then check the cable's outer diameter falls inside the clamping range, as the seal will only grip within it. M20 comes in two clamping ranges. Red is offered in M20 and M25 only.
M16 to M25 come in packs of 10, M32 in packs of 5, and M40 and above are sold each. Available in 8 sizes and 4 colours.
Typical uses
- Cable entries on junction and adaptable boxes
- Outdoor lighting and external sockets
- Control panels and isolators
- Motor and pump connections
Specification
- Brand: Krimpterm
- Range: Nylon Glands
- Product: IP68 Nylon Cable Glands
- Colours: Black, Light Grey, Red, White
- Sizes: M16x1.5 4-8mm (pack of 10), M20x1.5 6-12mm (pack of 10), M20x1.5 10-14mm (pack of 10), M25x1.5 13-18mm (pack of 10), M32x1.5 16-20mm (pack of 5), M40x1.5 22-31mm (each), M50x1.5 32-38mm (each), M63x1.5 37-44mm (each)
Krimpterm product codes: CG16-BLK, CG16-GRY, CG16-WHT, CG20-BLK, CG20-GRY, CG20-RED, CG20-WHT, CG20L-BLK, CG20L-GRY, CG20L-RED, CG20L-WHT, CG25-BLK, CG25-GRY, CG25-RED, CG25-WHT, CG32-BLK, CG32-GRY, CG32-WHT, CG40-BLK, CG40-GRY, CG40-WHT, CG50-BLK, CG50-GRY, CG50-WHT, CG63-BLK, CG63-GRY, CG63-WHT
