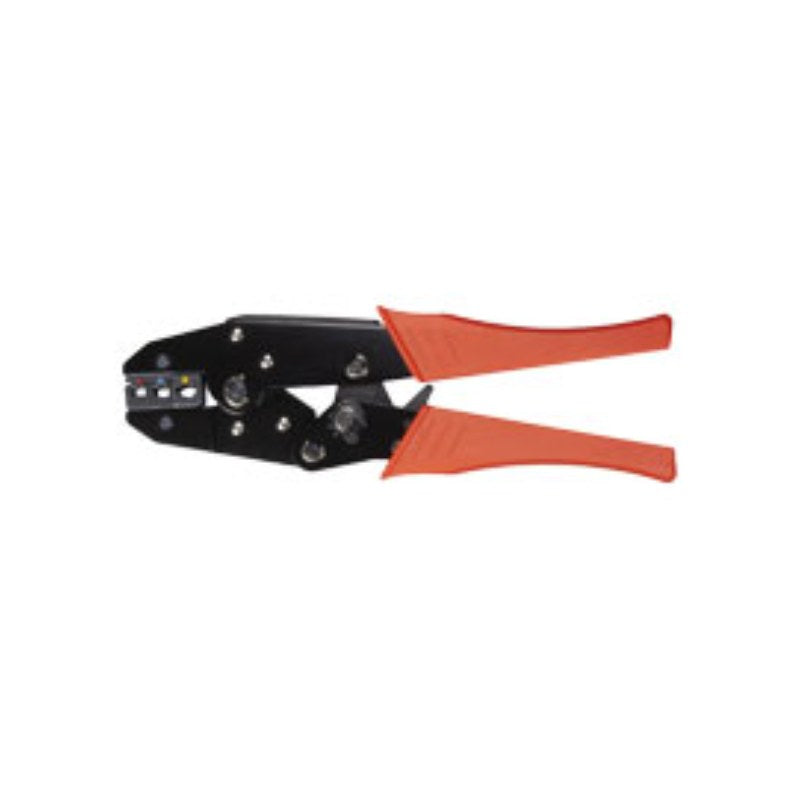

Ratchet controlled terminal crimping tools from Krimpterm. The ratchet will not release until the jaws have closed fully, which stops part-made crimps and gives each one the same pressure. Pressure is adjustable and the jaws are replaceable.
CMP2 (heavy duty) crimps insulated terminals from 0.5 to 6.0mm², which covers the red, blue and yellow sizes. CMP3 (heavy duty deluxe quality) handles insulated terminals and connectors over the same range, with a longer 260mm body for more leverage. CMP5 is for uninsulated receptacles and tabs from 0.5 to 6.0mm².
All three are hardened steel with red anti-slip handles. Available in 3 types.
Typical uses
- Red, blue and yellow ring, fork, spade and butt terminals (CMP2, CMP3)
- Insulated connectors in panel and harness work (CMP3)
- Bare spade receptacles and tabs on appliances and controls (CMP5)
Specification
- Brand: Krimpterm
- Range: Terminal Crimping Tools
- Product: Terminal Crimping Tools - Ratchet Control
- Types: Heavy Duty, Heavy Duty Deluxe Quality, For Uninsulated Spades
- Approvals: Halogen free, REACH compliant, RoHS compliant
Krimpterm product codes: CMP2, CMP3, CMP5
