The Portwest FR516 is a padded multi-norm winter coverall in the PW3 range, with a removable helmet compatible hood. It is for cold, wet outdoor work where flame, electric arc, chemical splash and visibility are all on the risk assessment.

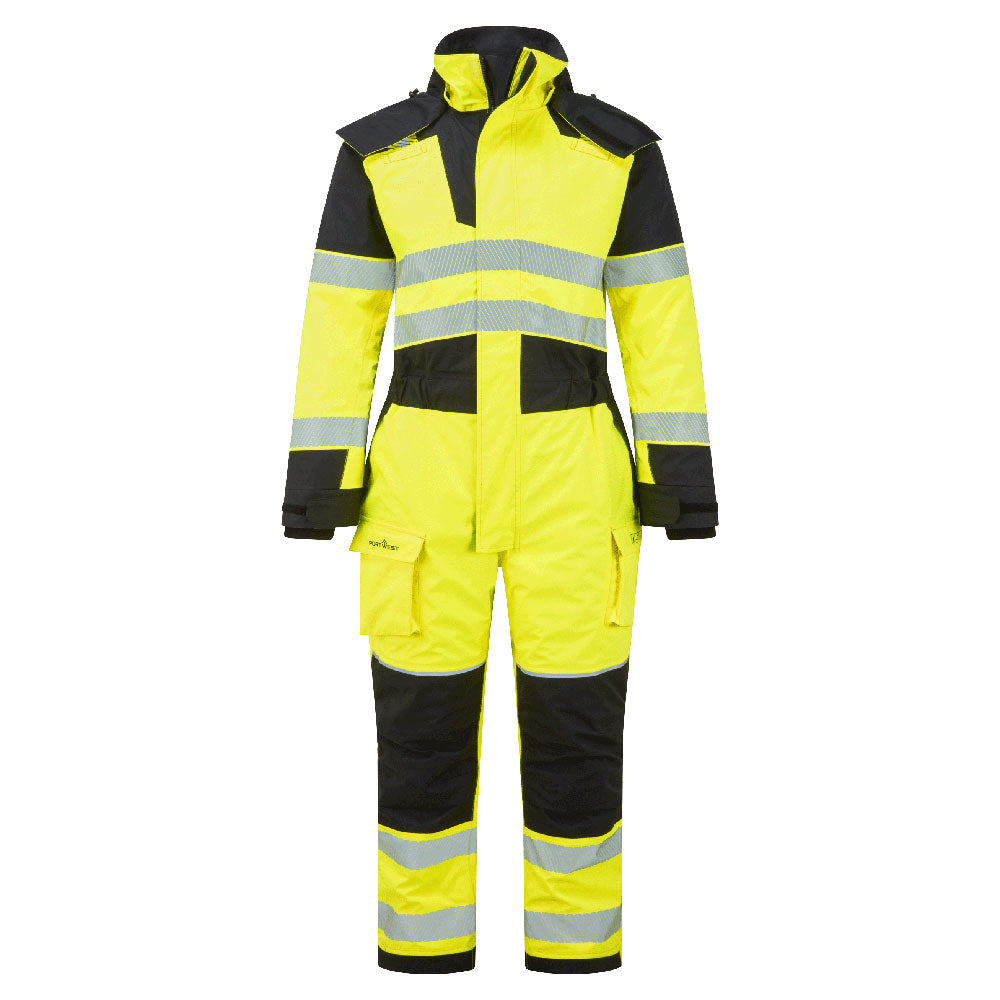

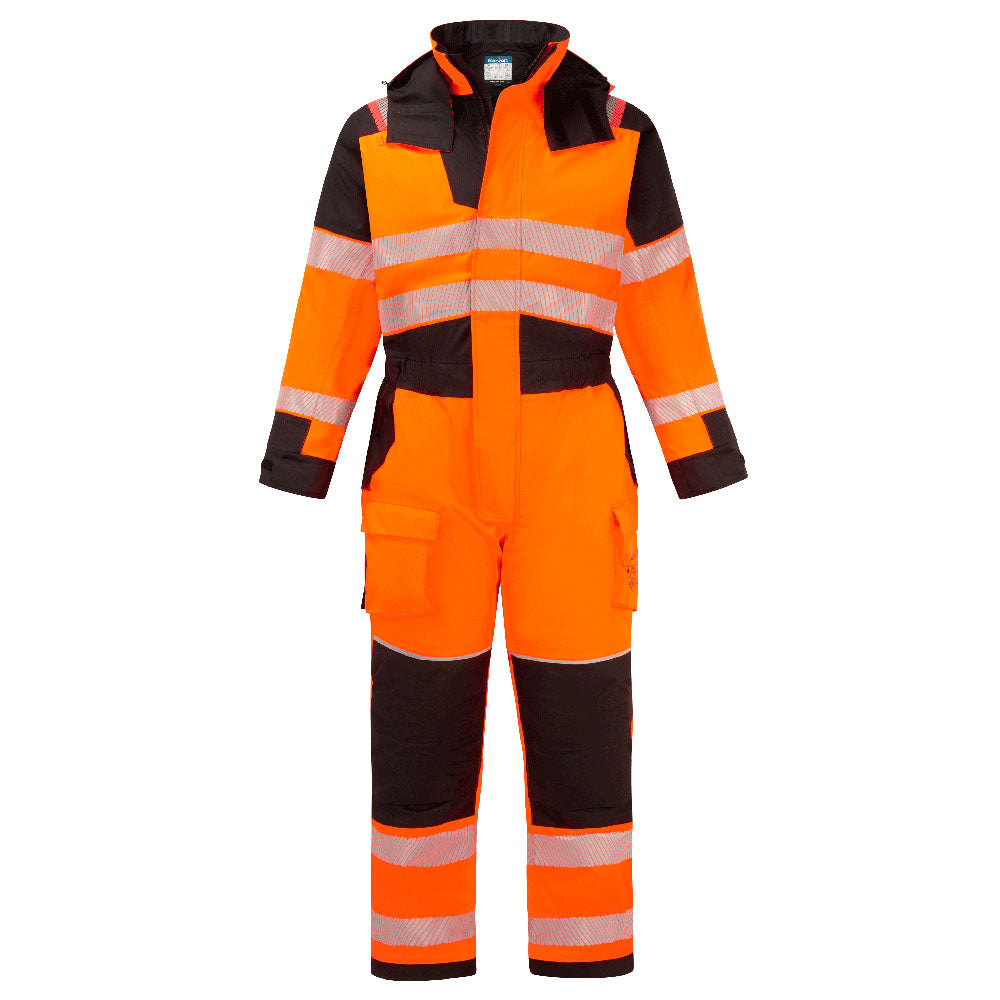

It is certified to EN ISO 11612, EN ISO 11611 Class 1, EN 1149-5, EN 61482-2 APC 2 (ATPV 37 cal/cm²), EN 13034 Type 6, EN ISO 20471 Class 3 and EN 342. Orange/Black or Yellow/Black, S to XXXL.
Key features
- Removable, helmet compatible, adjustable hood with shaped peak
- Acti-Reach one panel construction for arm and torso movement
- Fully lined with FR cotton and padded with FR filling
- Seven pockets including cargo, side, rule and bottom loading knee pad pockets
- Double storm flap and two-way zip
- Zipped side leg openings, hook and loop cuffs and hems
- Extendable leg length (31" to 33")
- Metal detector friendly: non-magnetic, nickel and ferrous free
Specification
| Style code | FR516 |
|---|---|
| Material | Shell: Modaflame Rain+ HV, 60% polyester, 21% modacrylic, 18% cotton, 1% carbon fibre, 7mm ripstop, PU coated, 270g. Lining: 100% cotton FR, 170g. Filling: 100% polyester FR, 150g |
| Standards | EN ISO 11612 (A1+A2, B1, C1, F1); EN ISO 11611 Class 1 (A1+A2); EN 1149-5; EN 61482-2 / EN 61482-1-1 (ELIM 32 cal/cm², ATPV 37 cal/cm²); EN 61482-2 / EN 61482-1-2 APC 2; EN 13034 Type 6; EN ISO 20471 Class 3; EN 342 (0.343 m²K/W, air permeability class 2, X); RIS 3279 TOM Issue 2 (orange only) |
| Rain rating | Class 4:1 X (listed on the Portwest UK DoC under EN 24232) |
| Colours | Orange/Black, Yellow/Black |
| Sizes | S, M, L, XL, XXL, XXXL |
| Sold as | 1 coverall |
UK Declaration of Conformity for FR516 (PDF)
For regular or bulk orders, open a trade account or ask us for a quote.
Frequently asked questions
Is it arc flash rated?
Yes. Under EN 61482-1-1 open arc testing it has an ELIM of 32 cal/cm² and an ATPV of 37 cal/cm². Under the EN 61482-1-2 box test it is APC 2 (tested at 7 kA). Check these figures against your own arc flash risk assessment.
Is the FR516 waterproof?
The shell is a PU coated ripstop and Portwest rates it Class 4:1 X for rain: water penetration Class 4, the highest, and breathability Class 1. X means the rain tower test was not carried out.
Can I wear it for welding?
Yes, for lighter work. It is certified to EN ISO 11611 Class 1, which covers less hazardous welding techniques with lower spatter and radiant heat. Heavier welding needs Class 2 protection.
Is it approved for rail work?
The Orange/Black version meets RIS 3279 TOM Issue 2. Yellow/Black is not rail approved.
