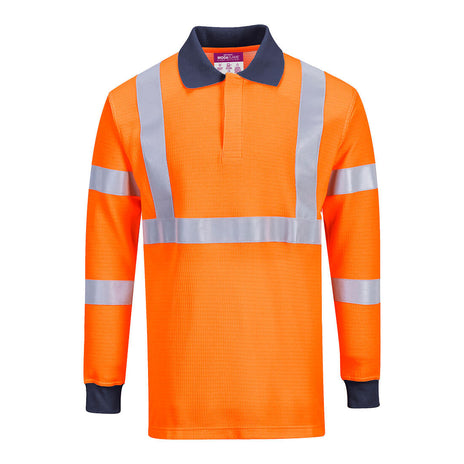

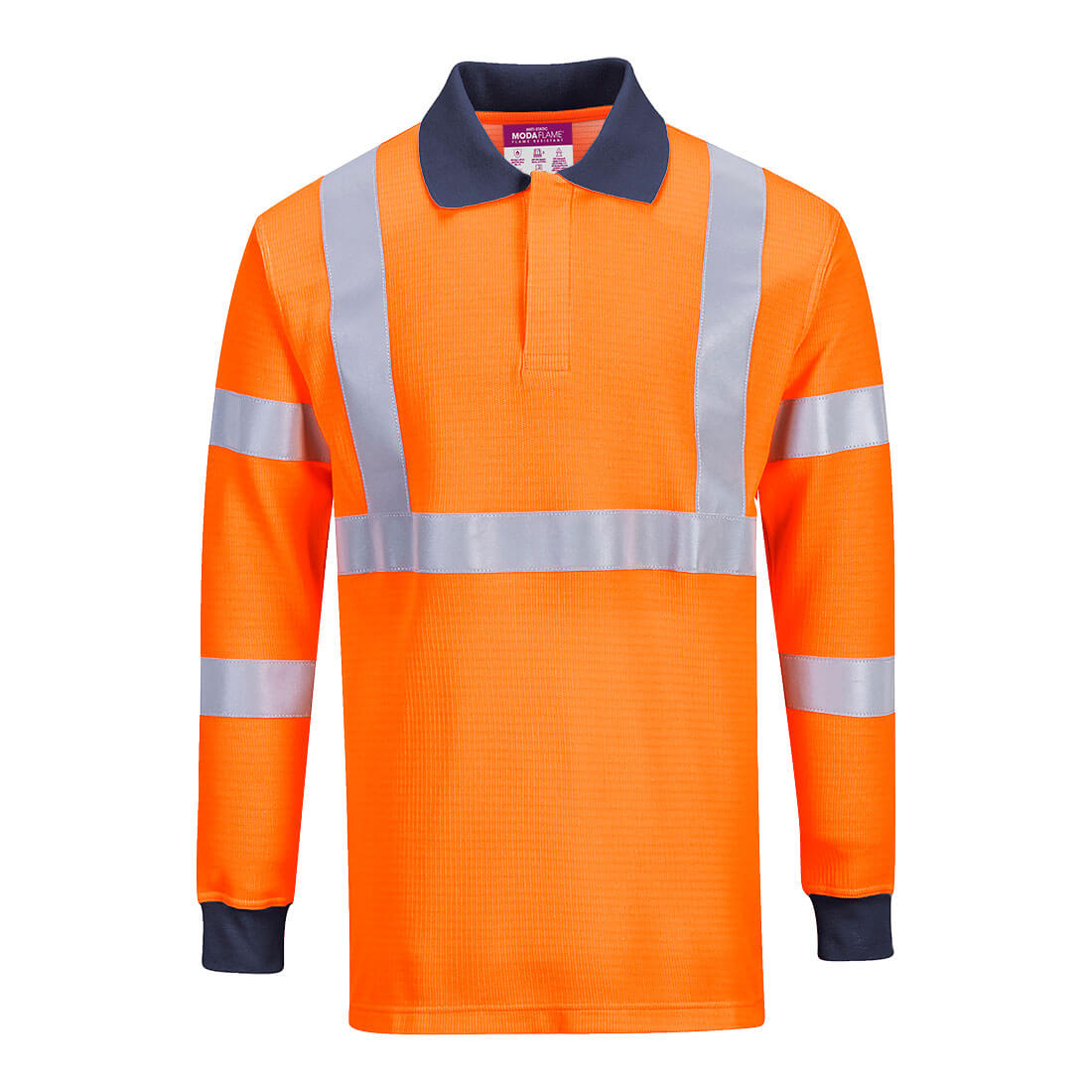

FR76 is an orange long sleeve polo for rail and electrical work. Its Modaflame knit is inherently flame resistant, so the protection stays through washing, and the fabric is 100% metal free.
It is certified to EN ISO 20471 Class 3 and RIS 3279 TOM Issue 2, and carries an arc rating under EN 61482-1-1 with an ATPV of 6.4 cal/cm2. Add EN ISO 11612 and EN 1149-5 and it covers flame, heat, static and visibility in one top. It is CE-CAT III.
Flame resistant reflective tape, navy ribbed cuffs, side vents and a button placket. Sizes S to 3XL.
Features
- Inherent flame resistance that lasts through washing
- Sewn-on flame resistant reflective tape
- Navy ribbed cuffs and button placket
- Side vents
- Comfort fit
- Lightweight, breathable fabric with moisture management
- Anti-static
- Holds its shape wash after wash
- 100% metal free
- Registered European Community Design
Standards
- EN ISO 11612 (A1, B1, C1, F2)
- EN 1149-5
- EN 61482-2 EN 61482-1-1 (ELIM 6 CAL/CM², ATPV 6.4 CAL/CM²)
- EN 61482-2 EN 61482-1-2 APC 1
- EN ISO 20471 Class 3
- RIS 3279 TOM Issue 2 (Orange Only)
- CE certified
- CE-CAT III
- Testing and certification: SATRA Technology Europe Ltd, certificate 2777/11790-03/E00-00, 0598
Materials
Shell fabric: Modaflame HVO Knit, 45% Modacrylic, 25% Polyester, 23% Cotton, 6% Aramid, 1% Antistatic, 220g.
Frequently asked questions
What standards is the Portwest FR76 certified to?
EN ISO 11612 (A1, B1, C1, F2) for heat and flame; EN 1149-5 for anti-static properties; EN 61482-2 EN 61482-1-1 (ELIM 6 CAL/CM², ATPV 6.4 CAL/CM²) and EN 61482-2 EN 61482-1-2 APC 1 for the thermal hazards of an electric arc; EN ISO 20471 Class 3 for high visibility; and RIS 3279 TOM Issue 2 (Orange Only), the UK rail high-visibility standard. Testing and certification by SATRA Technology Europe Ltd, certificate 2777/11790-03/E00-00, 0598.
What hi-vis class is the FR76?
EN ISO 20471 Class 3. Class 3 is the highest of the three classes and has the greatest area of fluorescent and reflective material. It also meets the UK rail standard RIS-3279-TOM in orange.
Is the FR76 arc flash rated?
Yes. It is certified to EN 61482-2 EN 61482-1-1 (ELIM 6 CAL/CM², ATPV 6.4 CAL/CM²) and EN 61482-2 EN 61482-1-2 APC 1. Always check the rating against your own arc flash risk assessment before use.
Which sizes does the FR76 come in?
We list the FR76 in sizes S to 3XL.
