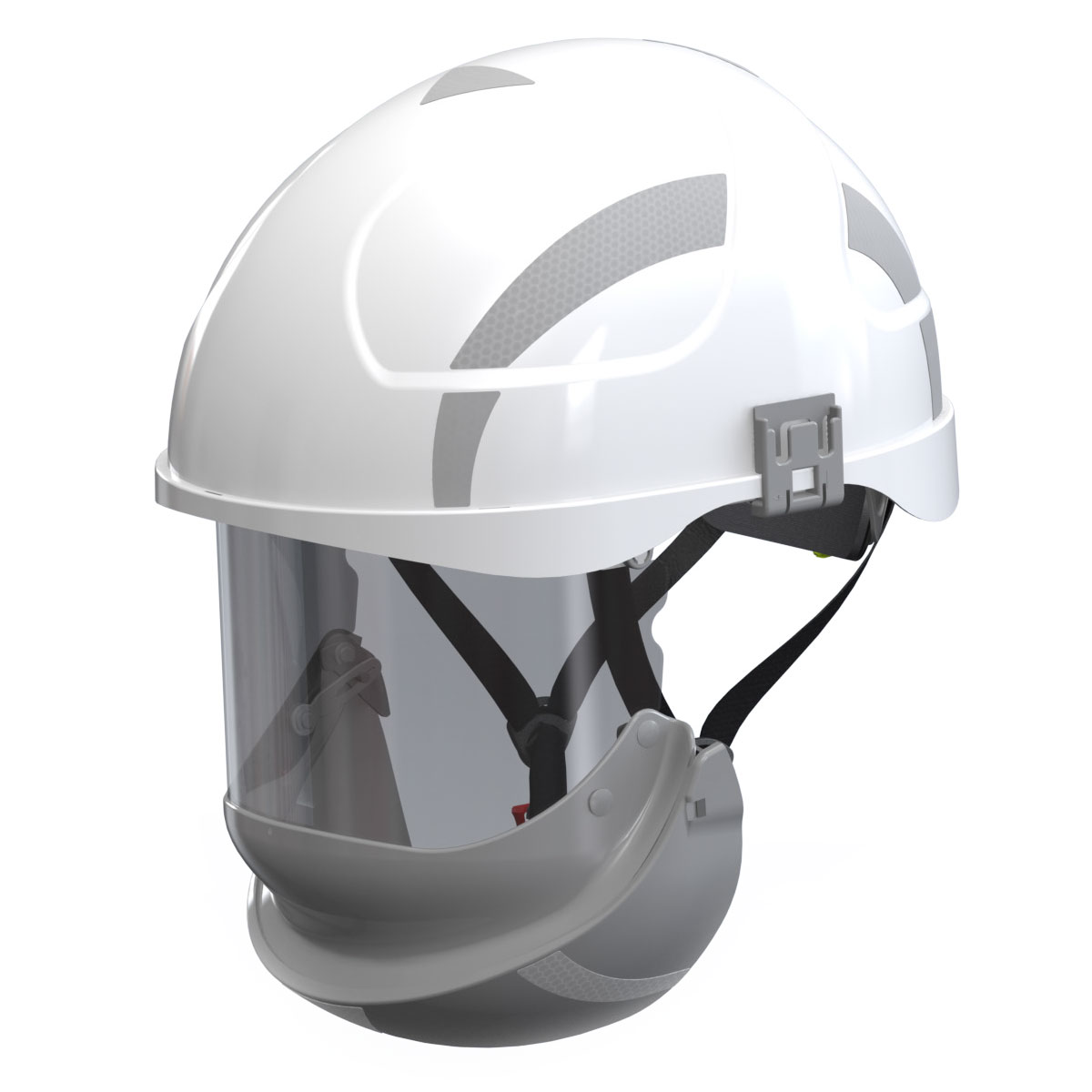

The ProGARM 2696 Class 2 Arc Flash Safety Helmet is an arc flash safety helmet from UK arc flash clothing specialist ProGARM, with a face shield rated above 36 cal/cm² ATPV and Class 2 box test protection.
The ProGARM 2696 Class 2 Arc Flash Safety Helmet is designed for professionals working in high-risk electrical environments.
It has an integrated polycarbonate face shield with an ATPV rating exceeding 36 cal/cm² and a Class 2 (7kA/0.5s) box test rating, covering the head, face, chin and neck against Arc Flash hazards.
The ABS helmet shell offers electrical insulation, impact resistance and protection against molten metal splash, while the adjustable 4-point chin strap and ratchet adjustment give a secure fit.
Features
- ABS helmet shell, suitable for live working
- Head circumference adjustment from 53cm to 63cm
- Lateral deformation (LD) and molten metal splash (MM) resistance to EN 397
- Electrical properties 440 Vac (EN 397)
- Electrical Class 0 (1000 V AC / 1500 V DC) to EN 50365
- Electrical Class E (20 kV AC) and Type 1 to ANSI Z89.1
- Integrated polycarbonate face shield, ATPV above 36 cal/cm²
- Class 2 (7kA/0.5s) box test
- Adjustable 4-point chin strap
Specification
| Style code | 2696 |
|---|---|
| Arc rating | Face shield ATPV above 36 cal/cm² |
| Box test | Class 2 (7kA/0.5s) |
| Standards | EN 397; EN 50365; ANSI Z89.1 |
| Protection | Antistatic, ARC Flash, Heat & Flame Resistance |
| Colour | White |
| Sizes | One size (53cm to 63cm) |
| Fit | Unisex |
| Sectors | Industrial Electrical, Electric Vehicles, Power Generation, Utilities |
| Lead time | Stocked in the UK, usually dispatched in 1 to 3 working days |
Delivery
Dispatched direct from ProGARM, the UK arc flash clothing specialist. Need sizing help, bulk or a quote for your team? Contact us for trade pricing.
