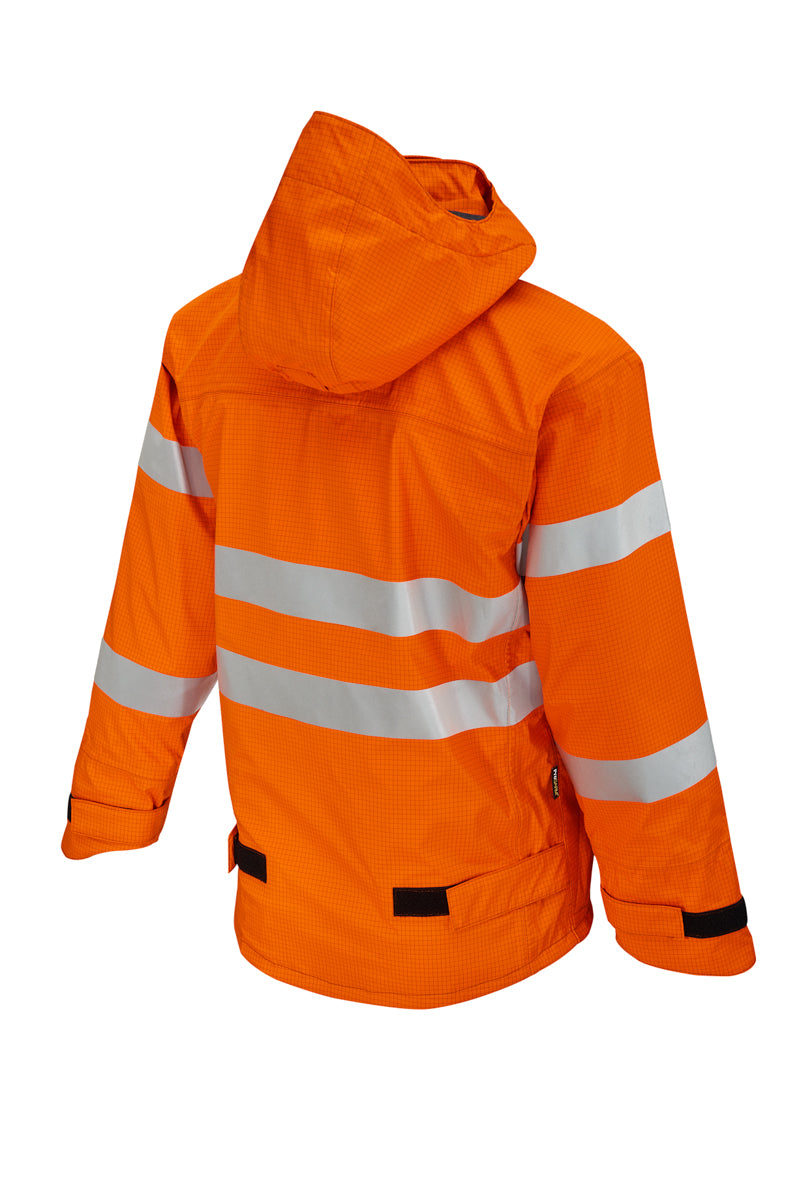

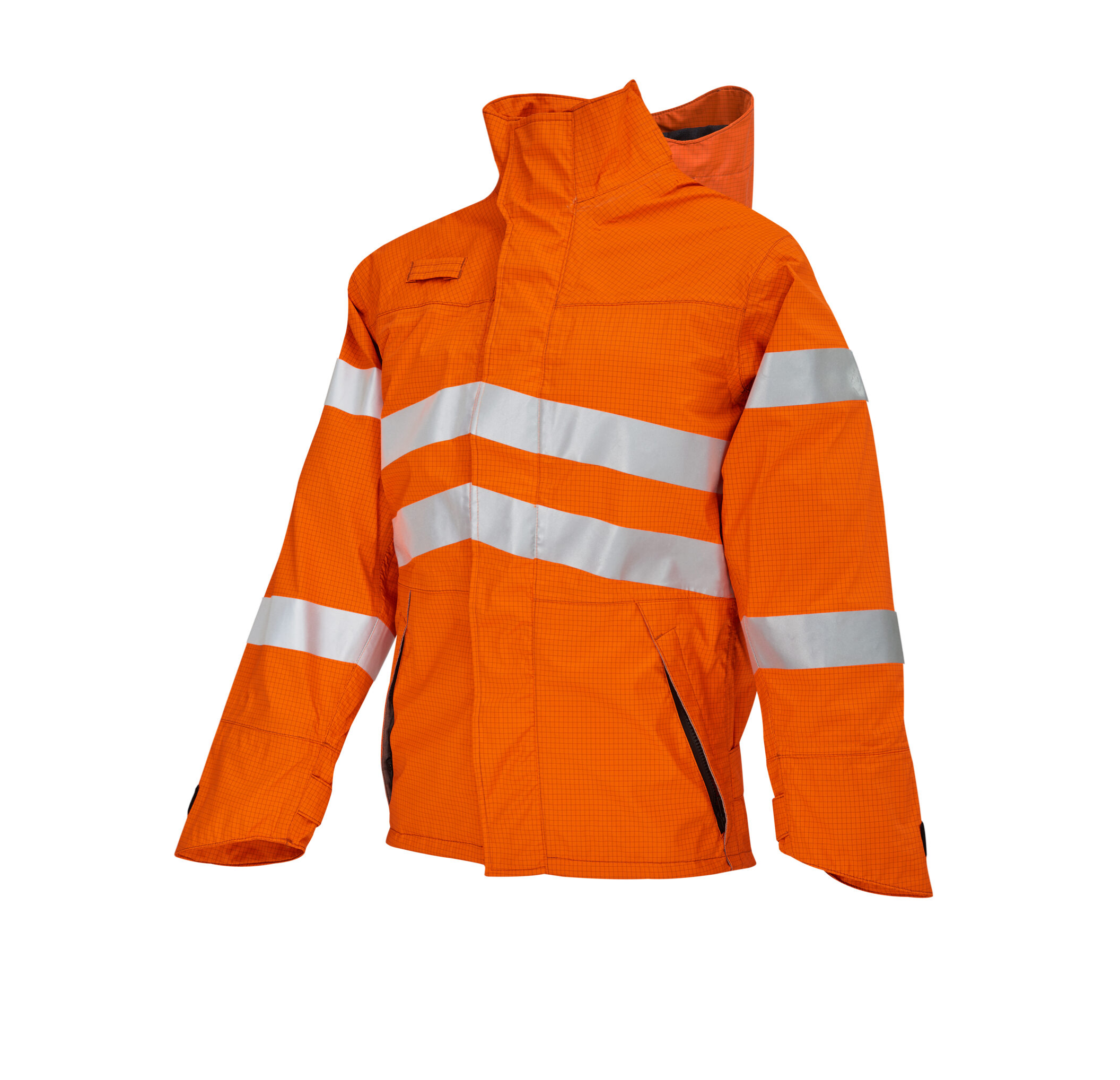

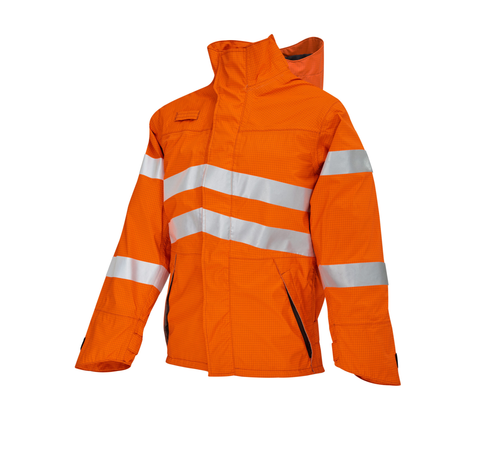

The ProGARM 9422 Hi-Vis Orange Lightweight Waterproof Arc Flash Jacket is a flame resistant jacket from UK arc flash clothing specialist ProGARM, arc rated to EN 61482-2 (APC 2, ATPV 25 cal/cm², ELIM 23 cal/cm²) and certified to EN 343, EN 1149, EN 13034, EN ISO 11611, with Class 3 high visibility.
The ProGARM 9422 Waterproof Jacket is designed for professionals who need high levels of Arc Flash protection combined with dependable protection from challenging weather conditions. Its 250gsm VXS+ Inherent outer fabric incorporates a waterproof membrane, while the lightweight 120gsm VXS+ Inherent woven lining provides additional comfort and protection. The jacket achieves an ELIM of 23 cal/cm² and ATPV of 25 cal/cm², together with APC 2 / 7kA Box Test performance.
Designed around practical everyday use, the 9422 features taped seams, adjustable cuffs and a fully adjustable foldaway hood for wet and windy conditions. Easy-Stretch side panels and a seam-free shoulder design improve comfort when wearing a harness, while an extended back provides additional coverage when bending. Multiple secure pockets, a radio loop, mandarin collar and durable FR fastenings complete a versatile jacket for demanding environments.
Features
- ARC 2 protection
- ELIM: 23 cal/cm²
- ATPV: 25 cal/cm²
- APC 2 / 7kA Box Test
- EN ISO 20471 Class 3 high visibility
- EN 343 Class 4/3/X waterproof protection
- Flame-resistant and antistatic protection
- Taped seams for waterproof and windproof performance
- Fully adjustable foldaway and removable hood
- Easy-Stretch side panels for improved comfort
Specification
| Style code | 9422 |
|---|---|
| Arc rating (EN 61482-2) | APC 2, ATPV 25 cal/cm², ELIM 23 cal/cm² |
| Box test | 7KA, APC 2, ARC 2 |
| Standards | EN 343 Class 4/3/x; EN 1149 Pt. 5:2018 Pt. 3:2004 Charge Decay; EN 13034 Type 6; EN ISO 11611 Class 1, A1; EN ISO 11612 A1, B1, C1 D1, E1, F1; EN ISO 20471 Class 3; EN 61482-2 APC 2 ELIM 23 cal/cm² ATPV 25 cal/cm²; RIS-3279-TOM Issue 2 |
| Protection | Antistatic, ARC Flash, Heat & Flame Resistance, Hi-Visibility, Railway |
| Fabric | 250gsm VXS+ Inherent outer fabric with waterproof membrane; Lightweight 120gsm VXS+ Inherent lining |
| Colour | Hi-Vis Orange |
| Sizes | S to 4XL |
| Fit | Mens |
| Sectors | Rail, Utilities |
| Lead time | Stocked in the UK, usually dispatched in 1 to 3 working days |
Delivery
Dispatched direct from ProGARM, the UK arc flash clothing specialist. Need sizing help, bulk or a quote for your team? Contact us for trade pricing.
