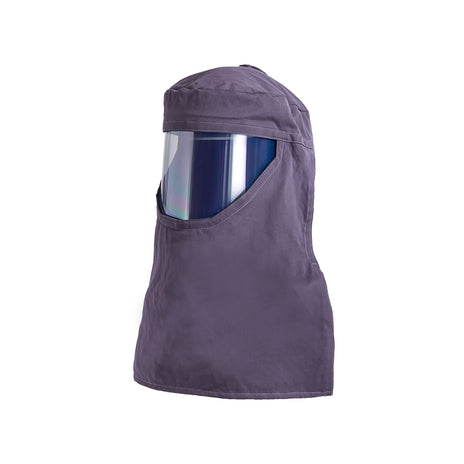

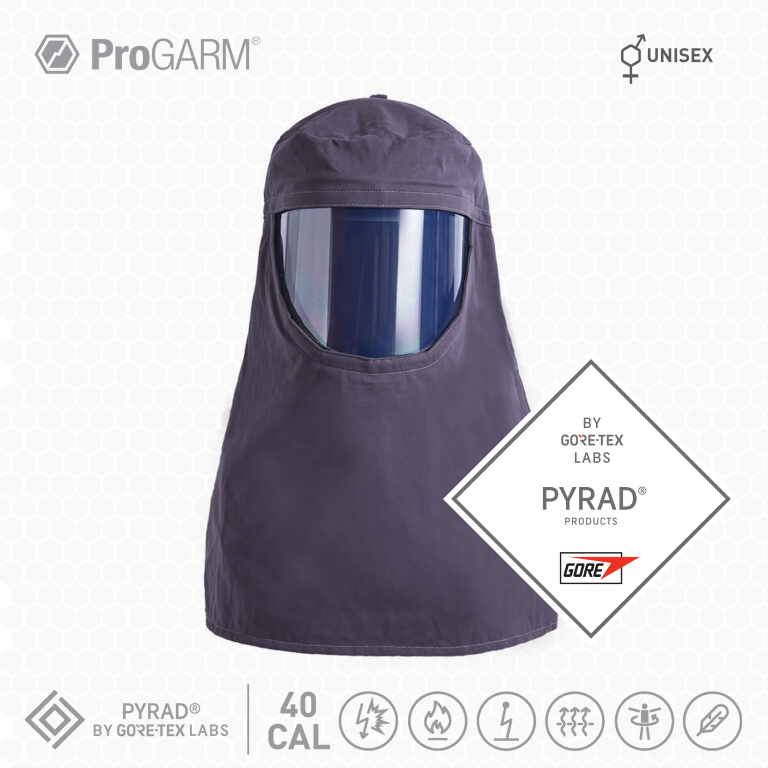

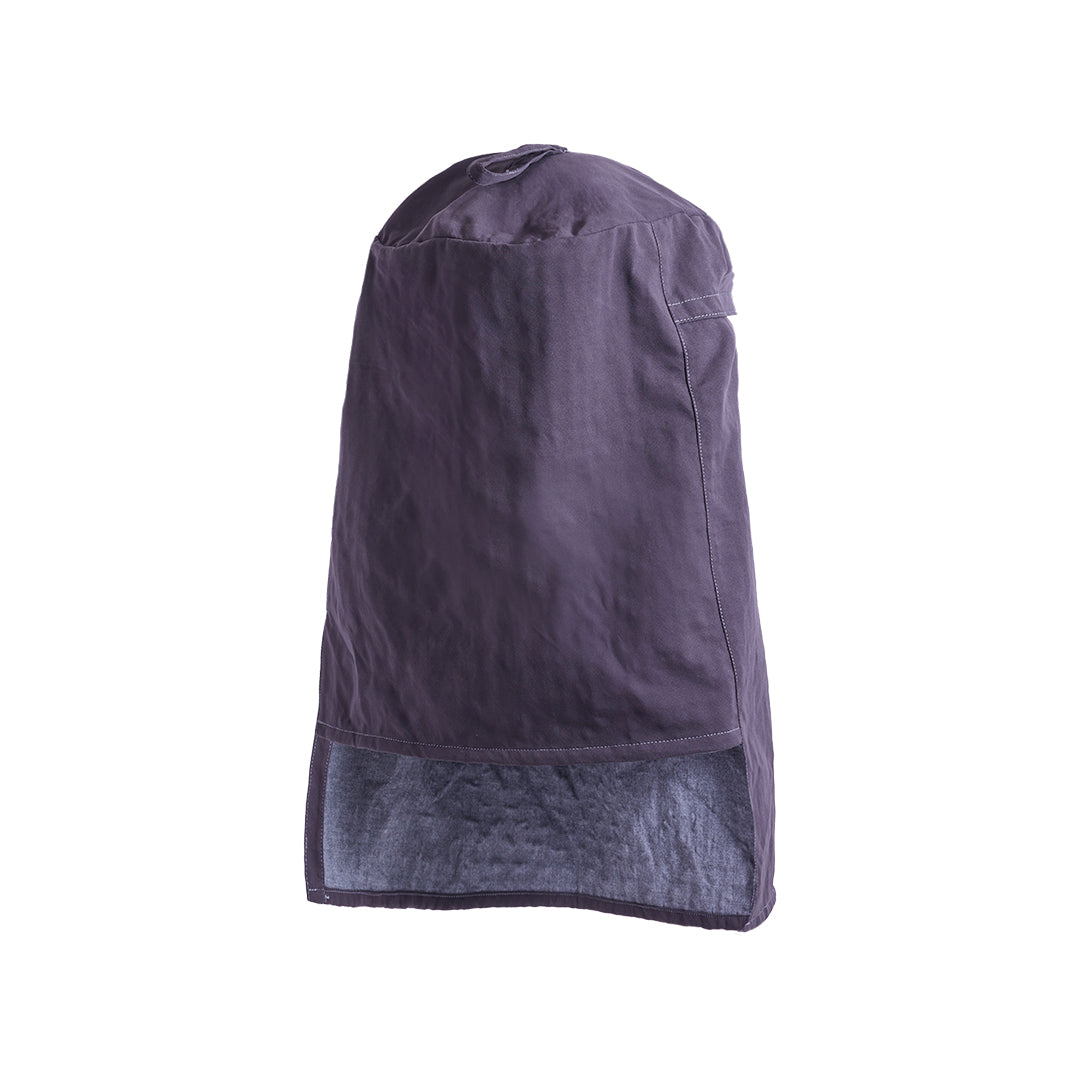

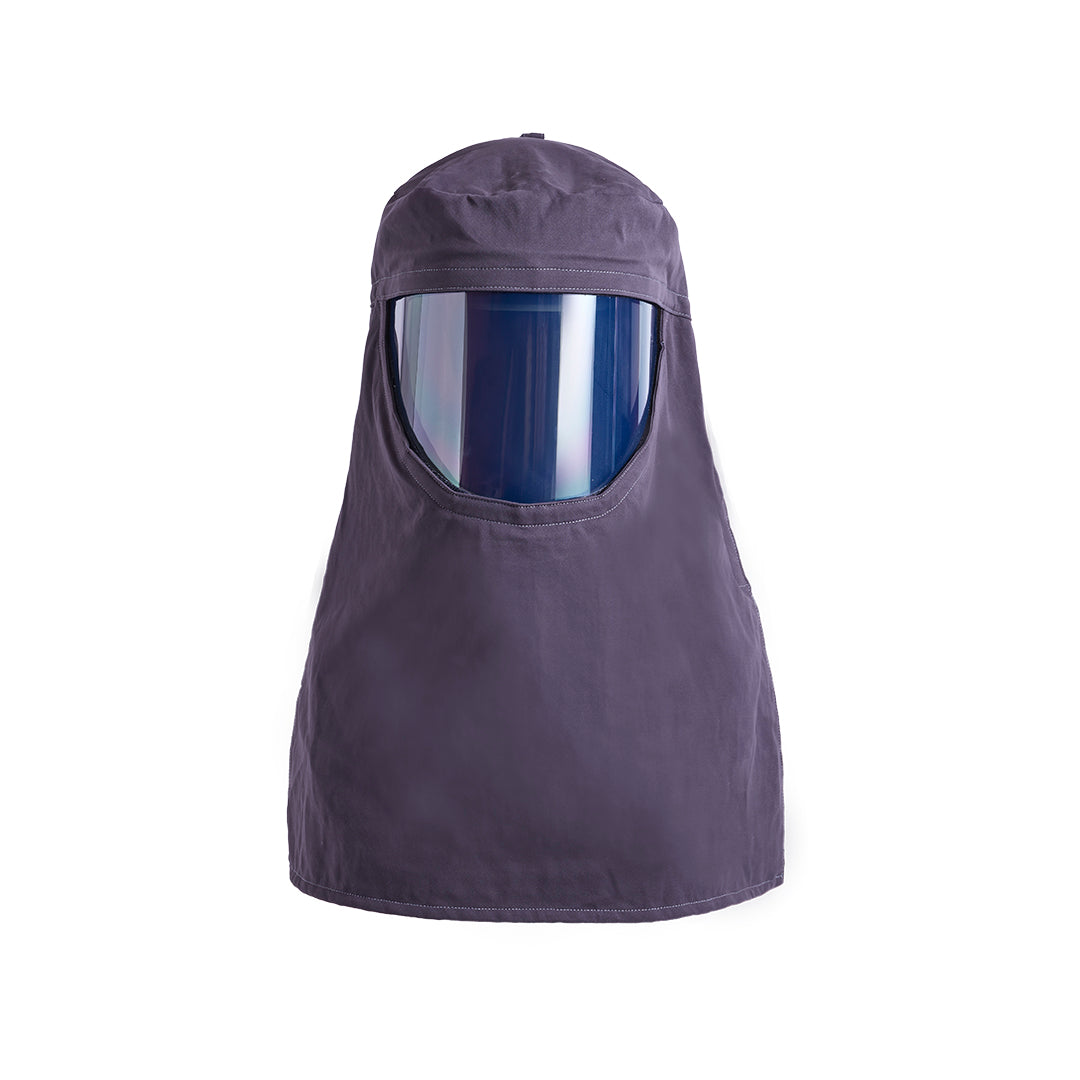

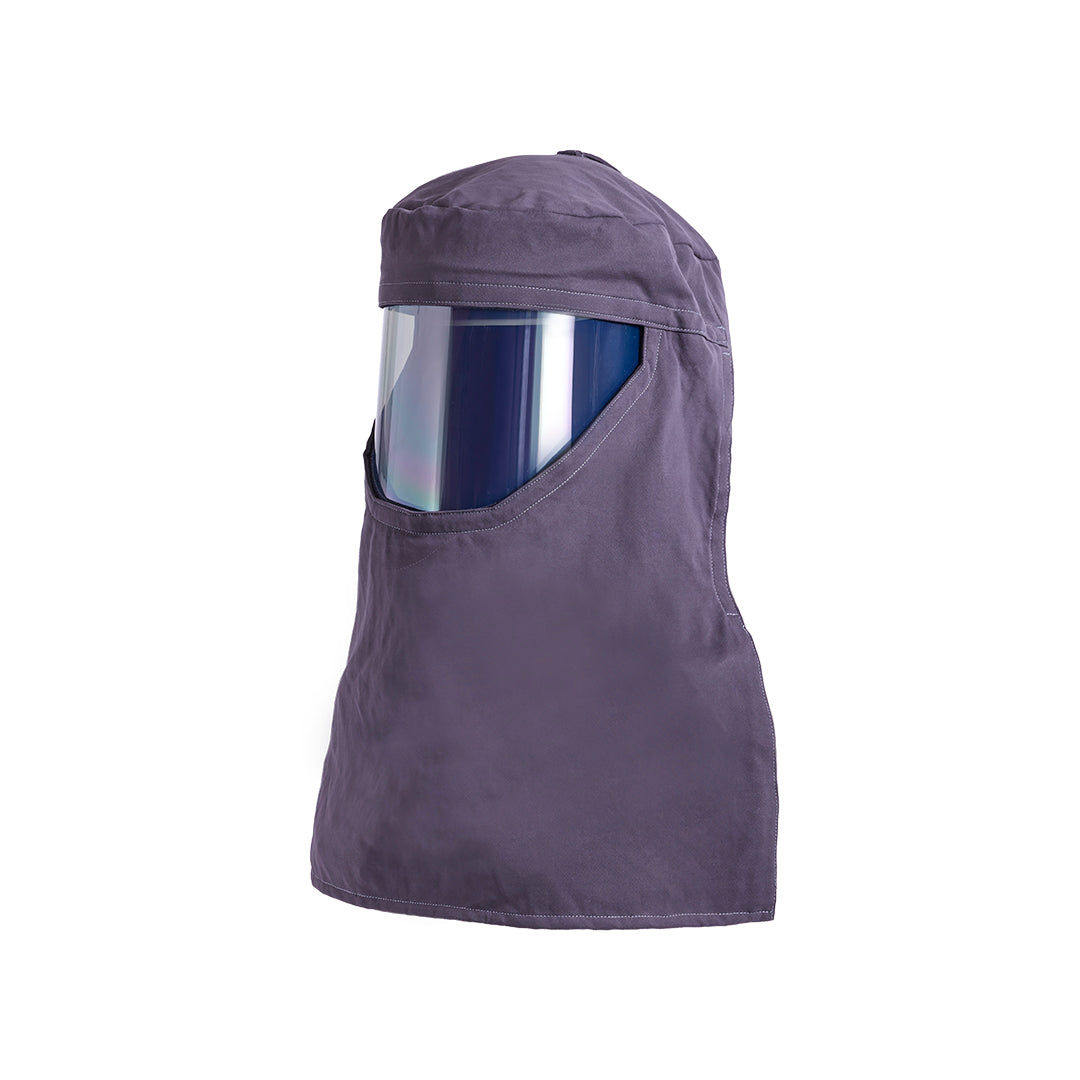

The ProGARM 9501 ARC 4 Switching Hood with PYRAD Technology is a flame resistant arc rated hood from UK arc flash clothing specialist ProGARM, arc rated to EN 61482-2 (APC 2, ELIM 40 cal/cm²) and certified to EN ISO 11612, EN 1149.
The ProGARM 9501 ARC 4 Switching Hood is engineered for professionals carrying out high-risk electrical and switching operations where Arc Flash protection is required. The system provides ARC 4 protection with an ELIM of 40 cal/cm² and APC 2 / 7kA Box Test performance, while the hood incorporates PYRAD Technology by GORE-TEX LABS for lightweight, breathable protection.
The strong ABS helmet is up to 20% lighter than most other helmets and incorporates a Dry-Tech sweatband and adjustable ratchet for improved comfort. Advanced moisture management helps keep the wearer cooler during demanding tasks, while the extended hood provides comprehensive head and neck coverage.
Features
- ARC 4 protection
- ELIM: 40 cal/cm²
- APC 2 / 7kA Box Test
- PYRAD Technology by GORE-TEX LABS
- Complete hood, visor and helmet protective system
- Strong ABS helmet construction
- Helmet up to 20% lighter than most other helmets
- Dry-Tech sweatband for enhanced comfort
- Adjustable helmet ratchet
- Advanced moisture management to help keep the wearer cool
Specification
| Style code | 9501 |
|---|---|
| Arc rating (EN 61482-2) | APC 2, ELIM 40 cal/cm² |
| Box test | APC 2 |
| Standards | EN ISO 11612 A1, B2, C1, F1; EN 1149 Pt. 5:2018 Pt. 3:2004 Charge Decay; EN 61482-2 APC 2 ELIM = 40cal |
| Protection | Heat & Flame Resistance, ARC Flash |
| Fabric | 320gsm hood fabric |
| Colour | Grey |
| Sizes | One size |
| Fit | Unisex |
| Sectors | Industrial Electrical, Power Generation, Rail, Windpower |
| Lead time | Stocked in the UK, usually dispatched in 1 to 3 working days |
Delivery
Dispatched direct from ProGARM, the UK arc flash clothing specialist. Need sizing help, bulk or a quote for your team? Contact us for trade pricing.
