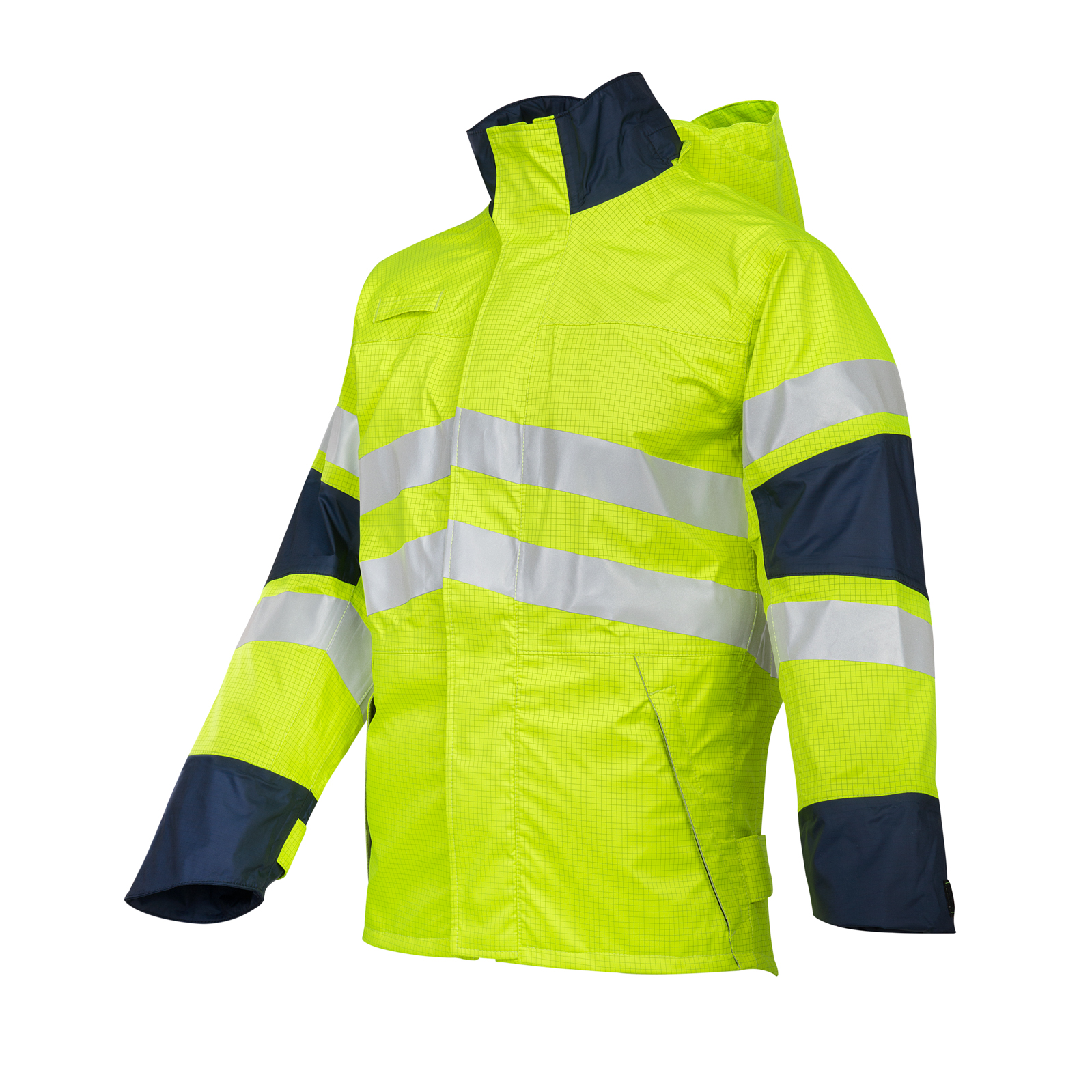

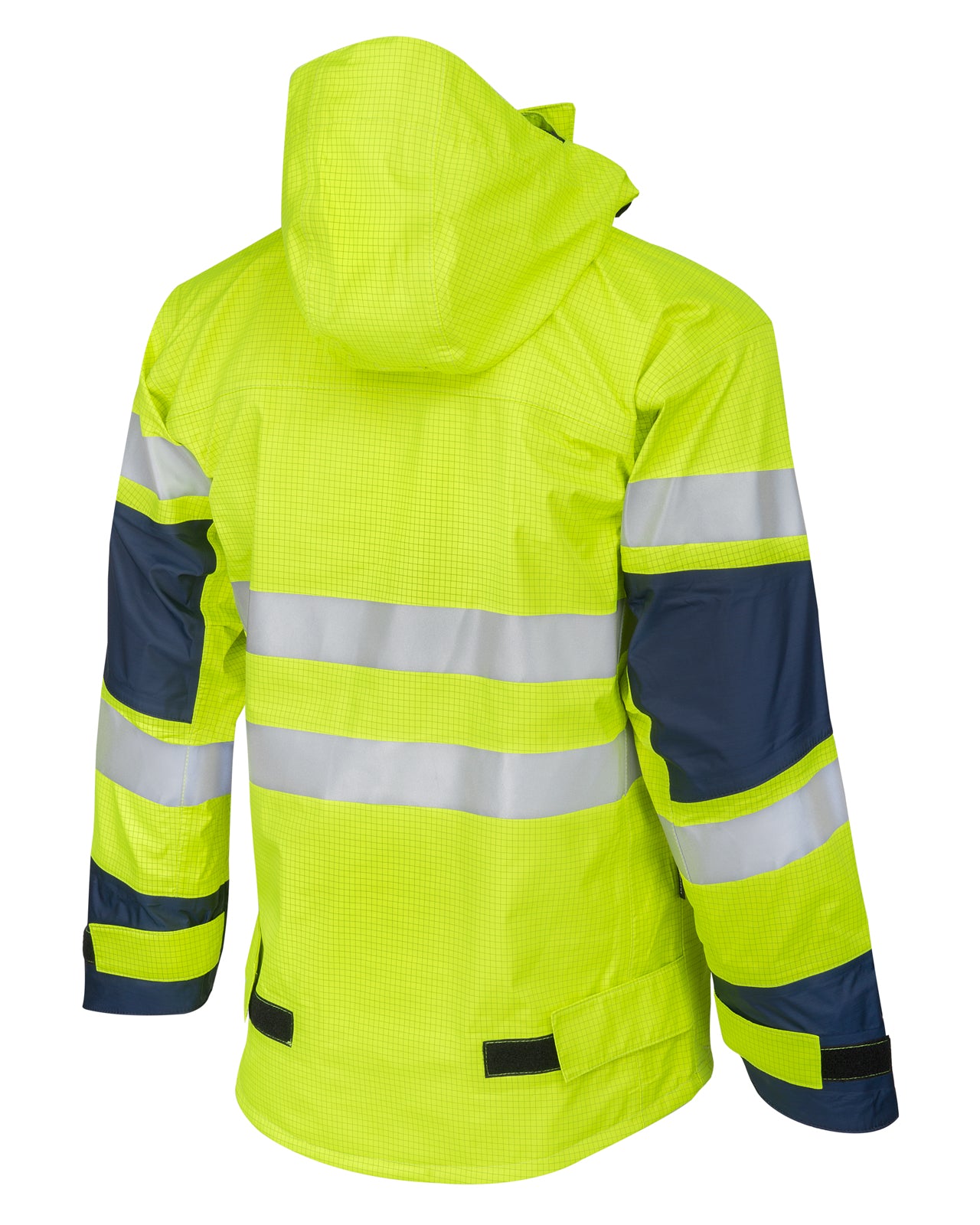

Two-tone hi-vis yellow and navy lightweight waterproof arc jacket for petrochemical, utilities, power generation, industrial electrical and windpower workers. It carries APC 2 with ATPV 25 cal/cm² and ELIM 23 cal/cm², and meets BS EN 343, BS EN 1149-5, BS EN 13034, BS EN ISO 11611, BS EN ISO 11612, BS EN ISO 20471 and BS EN 61482-2.
The seam-free shoulder holds up well under a harness. Elasticated inner cuffs and a storm flap keep the wind out, and the fully adjustable hood folds away with VELCRO brand fasteners. 120gsm lining. Sizes S to 4XL.
Features
- Flame resistant fabric with arc flash protection
- Two-tone design
- Elasticated inner cuffs
- Storm flap
- Taped seams, waterproof and windproof
- VELCRO brand fasteners on cuffs and back
- Improved fit
Standards
- Arc rating (EN 61482-2): APC 2, ATPV 25 cal/cm², ELIM 23 cal/cm²
- Box test: 7KA, APC 2, ARC 2
- EN 343 Class 4/3/x
- EN 1149 5:2008: Pt. 5:2018 Pt. 3:2004 Charge Decay
- EN 13034 Type 6
- EN ISO 11611 Class 1, A1
- EN ISO 11612 A1, B1, C1 D1, E1, F1
- EN ISO 20471 Class 3
- EN 61482-2 APC 2 ELIM = 23cal/cm² ATPV= 25cal/cm²
Specification
- Style code: 9720
- Fabric: 120gsm lining
- Colour: Hi-Vis Yellow/Navy
- Sizes: S to 4XL
- Fit: Mens
- Protection: Antistatic, ARC Flash, Heat & Flame Resistance, Hi-Visibility
- Sectors: Industrial Electrical, Power Generation, Rail, Utilities, Windpower
