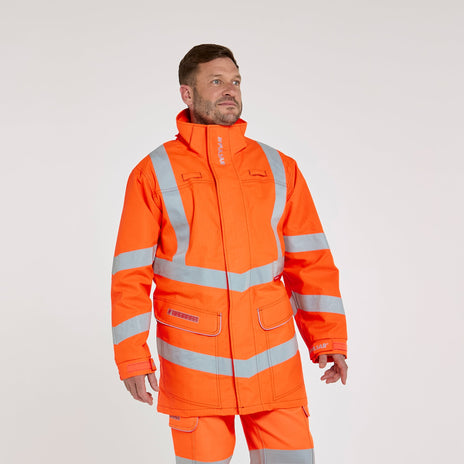

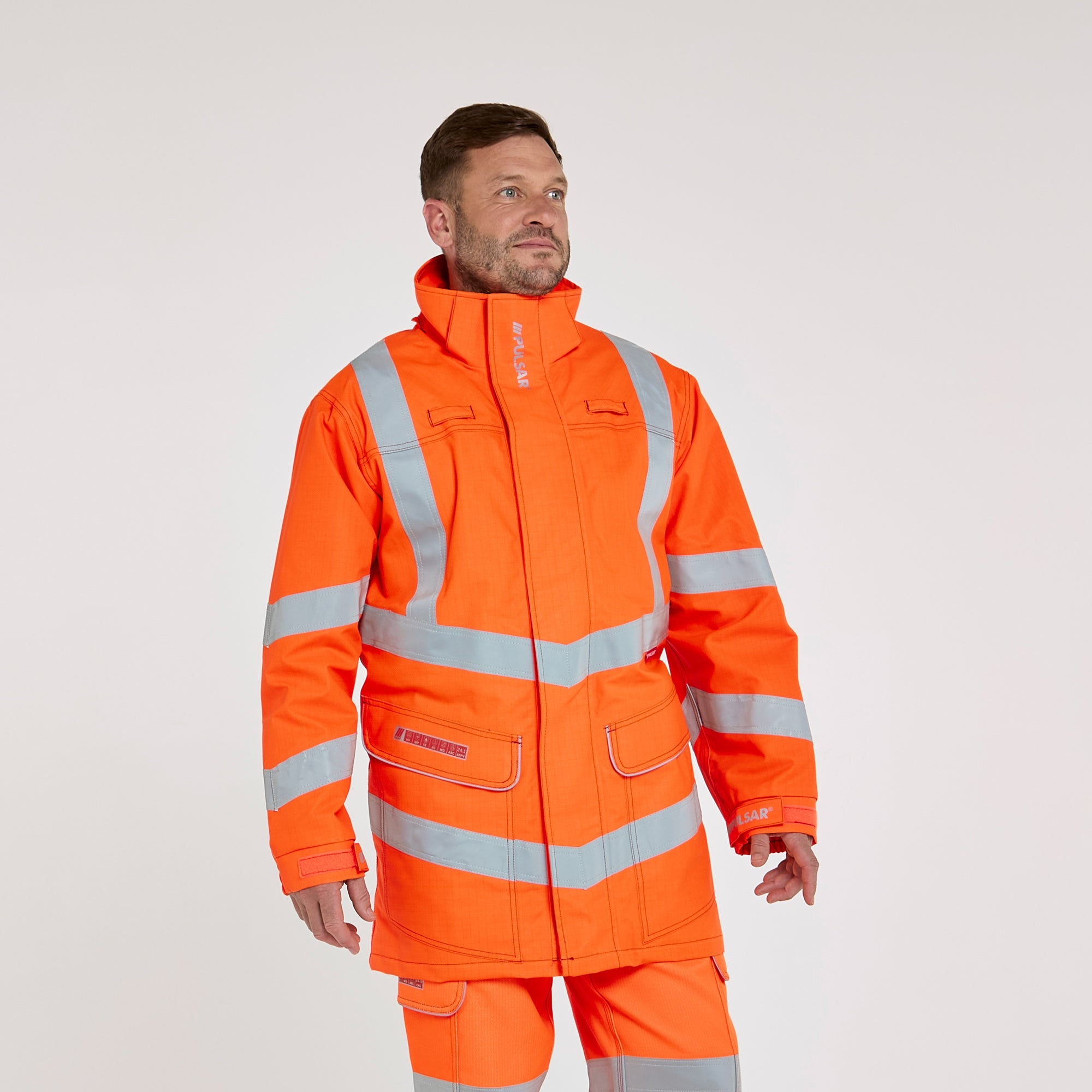

An arc rated waterproof storm coat for electrical work in wet weather. The shell is a two-layer inherently flame retardant Protex fibre blend with a breathable PU membrane and an FR viscose dropliner. Seams are fully taped and the coat is fully lined.
It is rated ATPV 23 cal/cm² and EN 343 Class 3:3. Chest attachment points take a radio or gas detector. Orange only, sizes S to 6XL.
Features
- Inherently flame retardant Protex fibre blend
- Two-layer PU laminate woven fabric with FR viscose dropliner
- Fully taped seams, fully lined

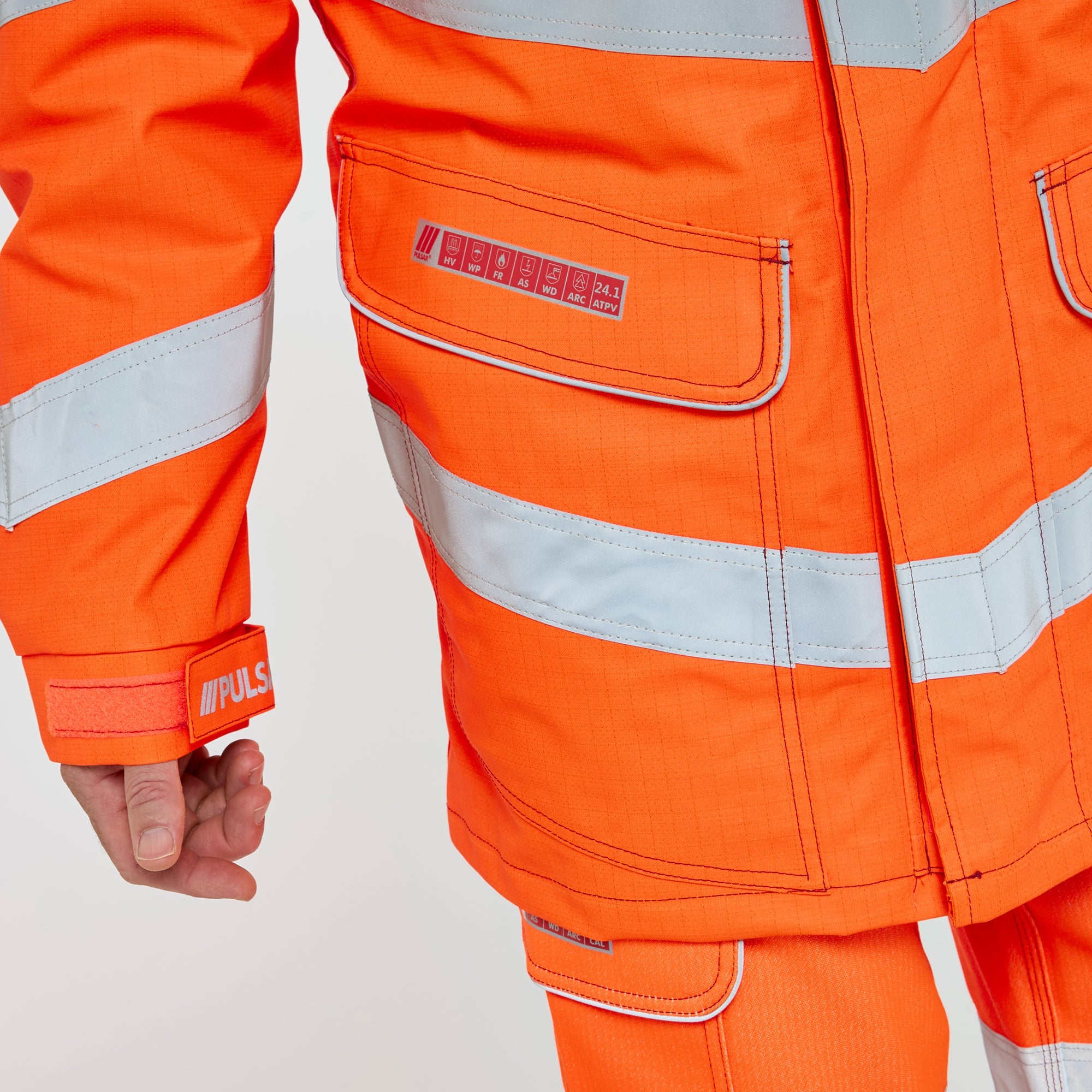

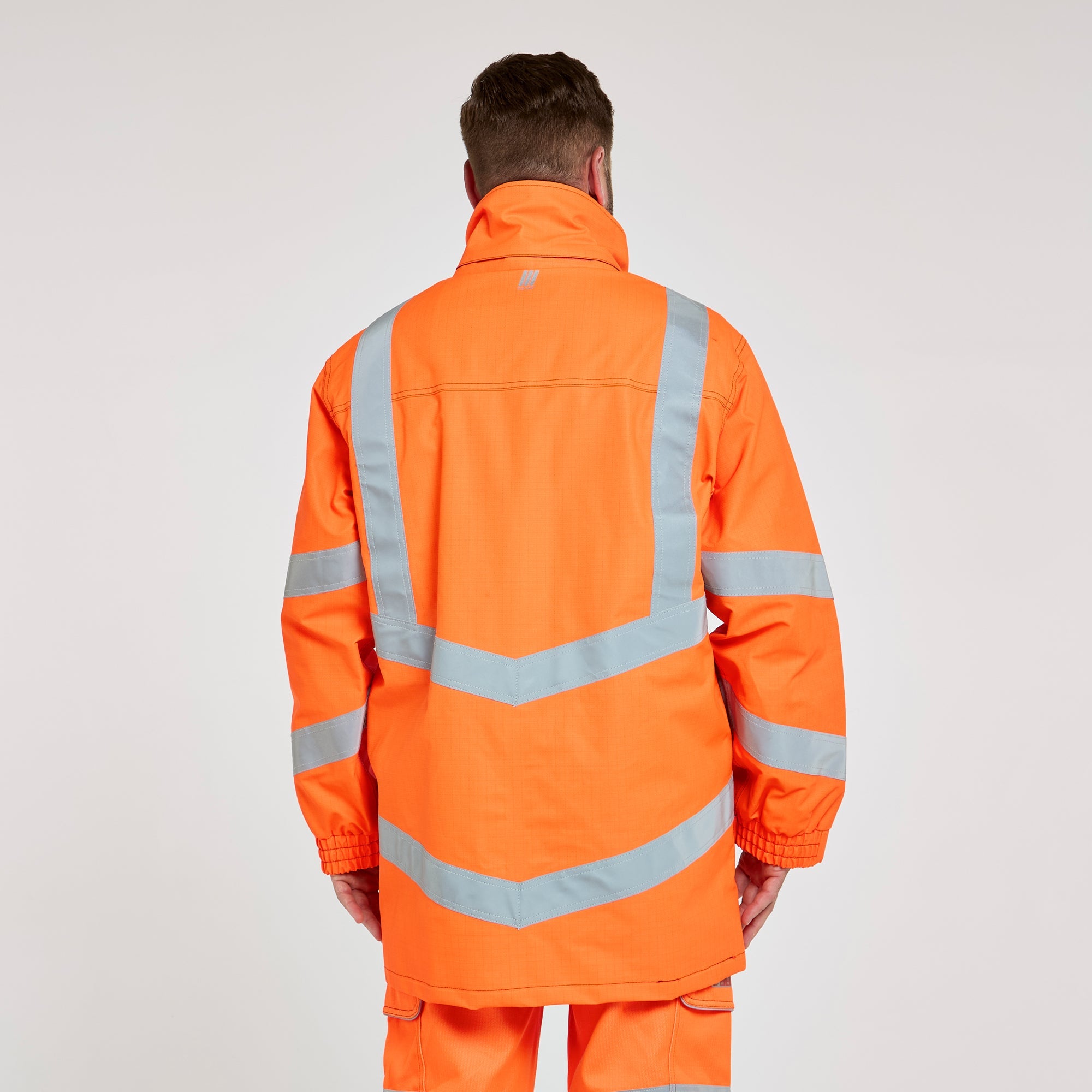

- 50mm sewn-on reflective bands at body, sleeves and shoulder braces
- Reflective piping on pocket flaps

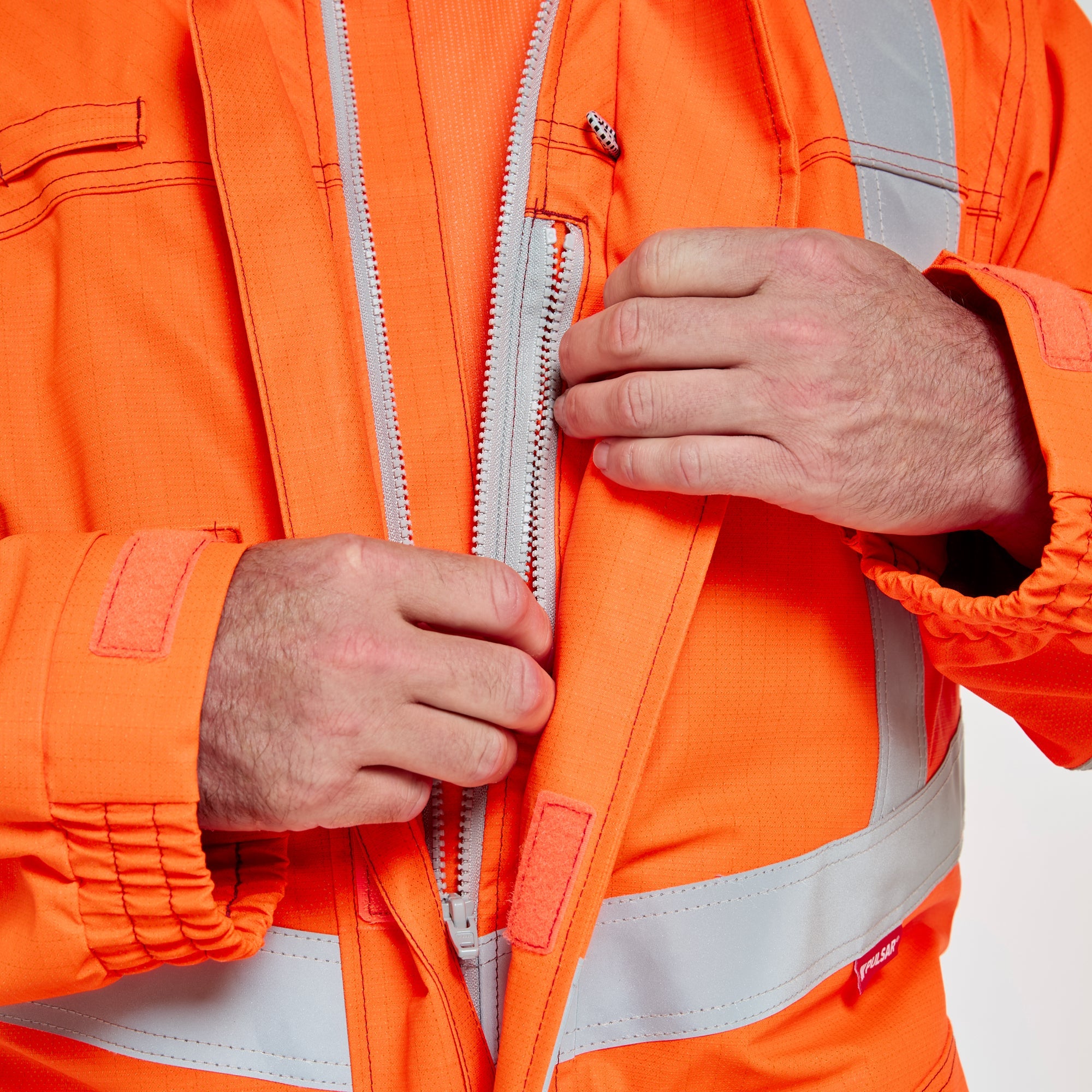

- FR two-way centre front zip
- Double storm flap with hook and loop fastening
- Chest attachment points for equipment such as a radio or gas detection device

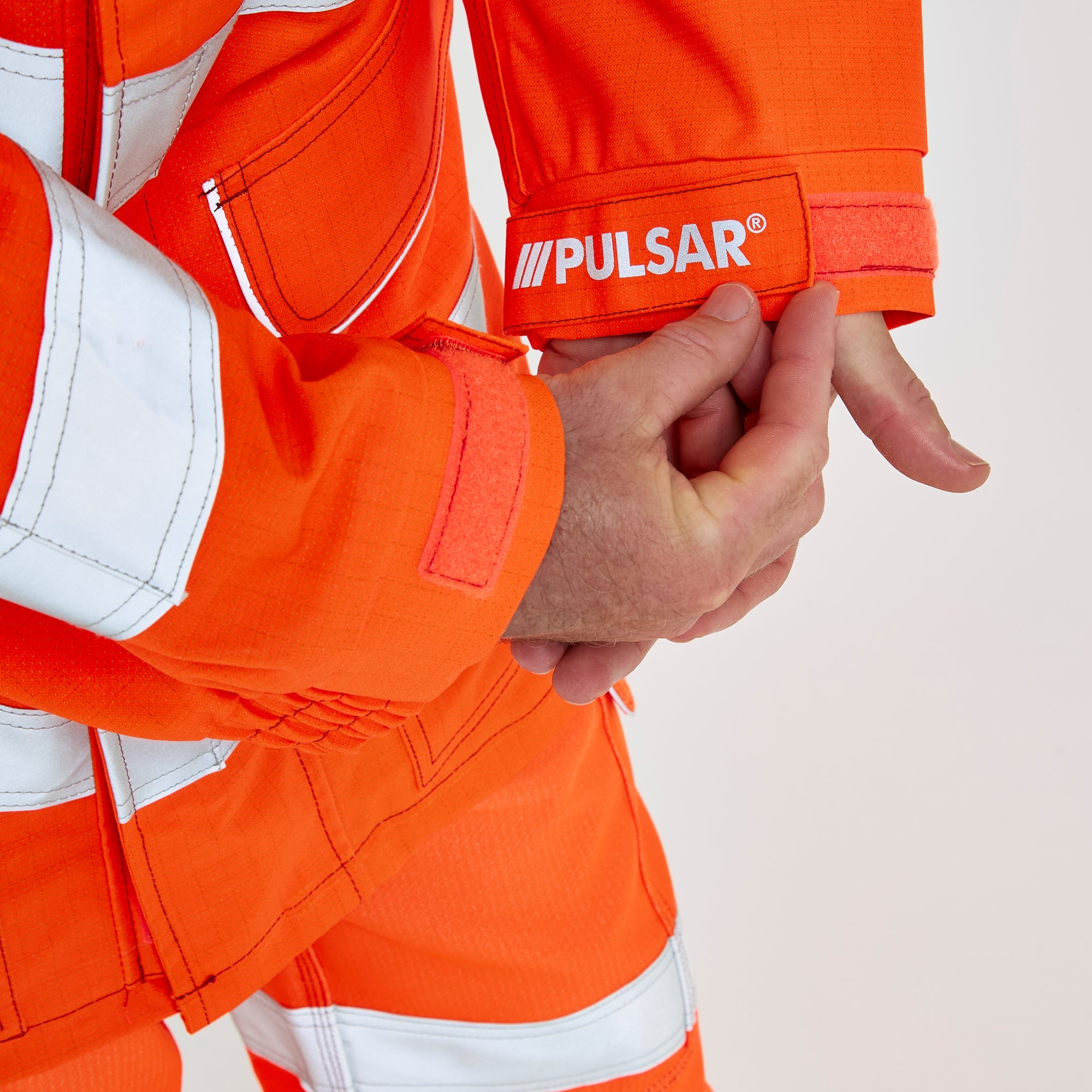

- Elasticated cuffs with hook and loop closure
- Aramid thread throughout, double stitched structural seams
- Internal pocket
Standards
- EN ISO 20471:2013+A1:2016 Class 3
- RIS-3279-TOM Issue 2 (2019)
- EN 343:2019 Class 3:3
- EN ISO 11612 (A1, B1, C1, D3, E3, F1)
- EN ISO 11611 Class 2
- EN 1149-5:2018
- EN 61482-2:2020 APC 2, ATPV 23 cal/cm², ELIM 19 cal/cm²
Specification
- Brand: PULSAR PROTECT
- Style code: PRARC09
- Colour: orange
- Sizes: S, M, L, XL, 2XL, 3XL, 4XL, 5XL, 6XL
Frequently asked questions
What standards is the Pulsar PRARC09 certified to?
The PRARC09 is certified to EN ISO 20471:2013+A1:2016 Class 3 (high-visibility clothing); RIS-3279-TOM Issue 2 (2019) (UK rail industry high-visibility standard); EN 343:2019 Class 3:3 (protection against rain); EN ISO 11612 (A1, B1, C1, D3, E3, F1) (protection against heat and flame); EN ISO 11611 Class 2 (protection during welding); EN 1149-5:2018 (electrostatic (anti-static) properties); EN 61482-2:2020 APC 2, ATPV 23 cal/cm², ELIM 19 cal/cm² (protection against the thermal hazards of an electric arc).
What hi-vis class is it?
It is certified to EN ISO 20471 Class 3. Class 3 is the highest of the three classes and gives the greatest area of fluorescent and reflective material. It also meets the UK rail standard RIS-3279-TOM, so it is suitable for Network Rail track-side work.
How waterproof is it?
It is certified to EN 343:2019 Class 3:3. The first number is resistance to water penetration and the second is breathability, each graded up to Class 4, so this garment is Class 3 for waterproofing and Class 3 for breathability.
Is it arc flash rated?
Yes. It is certified to EN 61482-2:2020 APC 2, ATPV 23 cal/cm², ELIM 19 cal/cm² for protection against the thermal hazards of an electric arc. Always check the rating against your own arc flash risk assessment before use.
Which sizes are available?
The PRARC09 comes in sizes S to 6XL.
